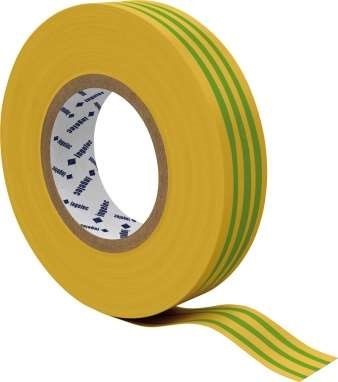

INSULATING TAPE ISOTAPE

REF RI131909N

ISOTAPE is a general purpose electrical insulation tape. Available in black and other colours, offering high electrical rigidity for electrical insulation, identification and assembly of wires and cables.

WANT TO TRY ?

Technical characteristics

- Tape thickness: 0.13 mm for all references. (EN1942 test method)
- Resistance to flame propagation: Self-extinguishing according to ASTM D 1000
- Dielectric strength: ≥40kV/mm according to ASTM D1000
- Adhesion on steel for 19mm: ≥1.0N/cm according to ASTM D1000 and ISO 29862
- Adhesion on backing for 19mm: ≥1.0N/cm
- Breaking load: ≥15N/cm according to ASTM D 3759, ASTM D1000 and ISO 29864
- Elongation: ≥150% according to ASTM D 3759 and ISO 29864
- Application temperature: 10°C to 80°C
- Recommended storage conditions: Between 20-30°C, 65% relative humidity without direct contact with sunlight in the original packaging. (By respecting these conditions, the performance of the insulating tape is guaranteed for 2 years)
- Ingelec marking on vinyl
- Recommendations for use:
- Insulation tape should be applied half-overlapping, the last layer should be rolled up without tension to avoid feathering of the insulation tape.
